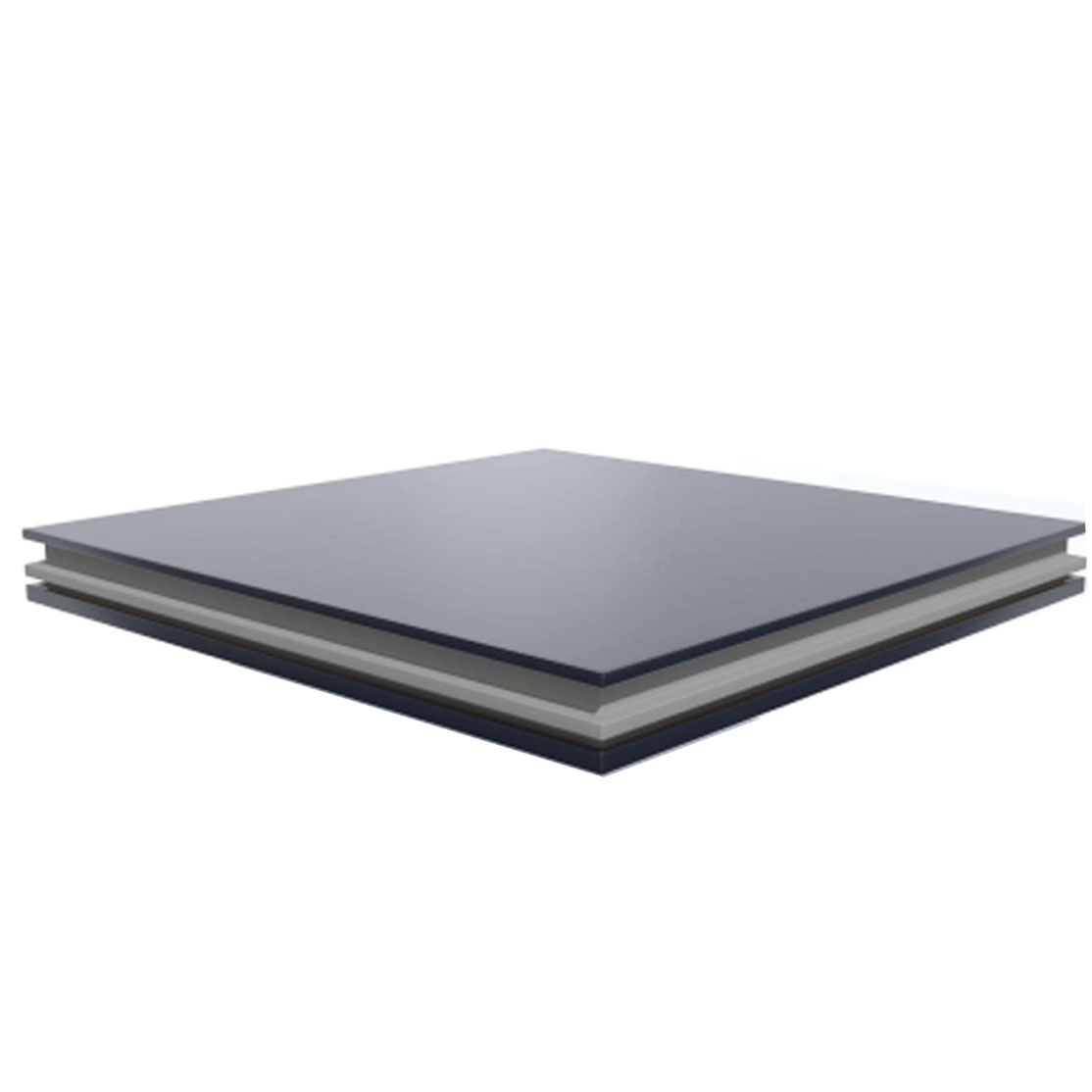

Cellular Board
Hark box-type honeycomb panel has large size and excellent flatness, meeting strict flatness requirements for large panels.
It is lightweight with high strength, reducing building structure load and ensuring stable long-term use.
The box-type structure is reasonable, with tight layer combination and strong structural stability.
Product Introduction
Cellular Board stands out for its excellent features. It has large, flat panels, is lightweight yet high-strength, and features a more rational box-type structure. Moreover, its strong custom processing capability allows it to meet diverse needs in packaging, construction, and other industries effectively.
Custom processing
The product boasts strong processing and customization capabilities. It can create diverse structural forms such as folded panels, curved panels, and triangular panels according to design requirements, and can also realize complex curved shapes, flexibly adapting to the unique design concepts of various architectural and decorative scenarios, thus providing broad possibilities for the creative expression of spatial forms.
At the same time, its customization performance in terms of surface details and performance is also prominent. It can not only create rich and diverse surface textures but also undergo special coating treatments. From visual texture, color style to functional properties, it fully meets the personalized needs of different projects, helping each application scenario present an exclusive design style and use value.
Characteristics
| Item | Standard Specifications and Parameters |
| Material | 3000 series high-grade aviation aluminum alloy, color-coated steel plate and stainless steel plate (other materials can be customized as required, such as anodized plate, titanium-zinc plate, copper plate, etc.) |
| Processing Technology | Bending/continuous roll forming + two-component polyurethane adhesive hot pressing composite |
| Internal Core Material | Corrugated, honeycomb core |
| Specification and Structure | Width: 100mm - 1700mm (other widths can be customized);Length: 100mm - 13,000mm;Structure: Box-type; Concealed frame; Hook (other forms can be customized);Thickness: 10mm; 12mm; 20mm; 25mm, etc., other thicknesses can be customized;Panel: 0.7mm - 1.5mm (other thicknesses can be customized as required);Back panel: 0.5mm - 1.0mm |
| Surface Coating | Pre-roll coating |
| Color | Customized as required |
| Fire Rating Standard | Class A GB8624-1997 |

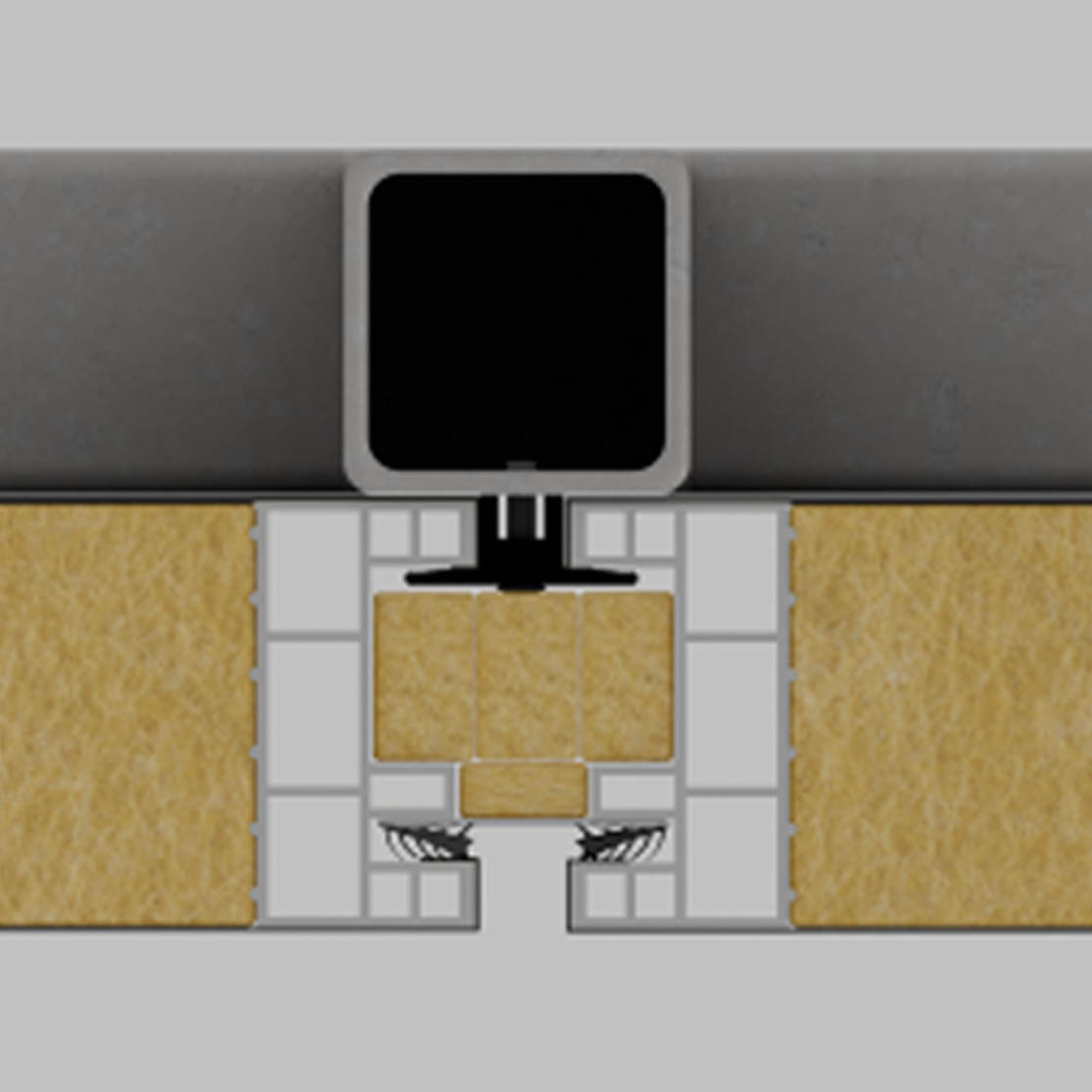

Installation Features、
This product's installation features are highly prominent. Its installation system is mature and reliable, providing stable support for construction; the joint forms are diverse, allowing flexible adaptation to different design and functional requirements; it adopts a telescopic structural design, effectively addressing deformation issues caused by environmental changes; at the same time, installation and maintenance are convenient, greatly saving time and labor costs for both installation and subsequent maintenance.
